MV Voltage & Current Transformers

Product Overview

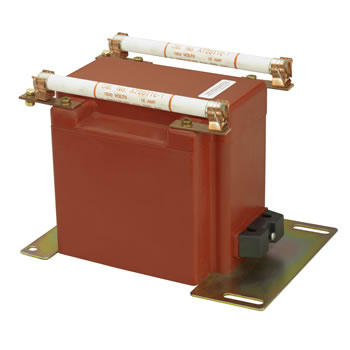

MV Voltage Transformers - Single Phase

Frequency: 60 Hz Standard, 50 Hz available
Primary Voltages: up to 15kV
Secondary Voltage: 120V
Insulation Level: 600V, 10 kV BIL full wave
Single phase construction
Single or two bushing designs
Wide range of ratios with 120V secondary as standard (other secondary voltages available)
Vacuum resin encapsulated construction
Various mounting options
Supplied with or without primary fuses
All transformers are partial discharge tested

MV Voltage Transformers - Three Phase

Frequency: 60 Hz Standard, 50 Hz available
Primary Voltages: up to 15kV
Secondary Voltage: 120V
Insulation Level: 600V, 10 kV BIL full wave
Three phase construction
Single or two bushing designs
Wide range of ratios with 120V secondary as standard (other secondary voltages available)
Vacuum resin encapsulated construction
Various mounting options
Supplied with or without primary fuses
All transformers are partial discharge tested

MV Current Transformers

Frequency: 50 - 400Hz
Insulation Level: 15.5kV, 10 kV BIL
Application: Operating meters, instruments and control devices.
Available in many different sizes.
