Frequency: 50 - 400Hz
Insulation Level: 600V, 10 kV BIL full wave
Wide range of round, rectangle windows or DIN windows available.
Available in many different sizes, with or without mounting feet.
Plastic case or encapsulated construction.
Secondary can be leads, terminals or pins.
Single ratio or multi ratio models are available.
Wide range of Ratios: 50:5 to 6000:5 (1 amp Secondary available).
Various secondary currents are available.

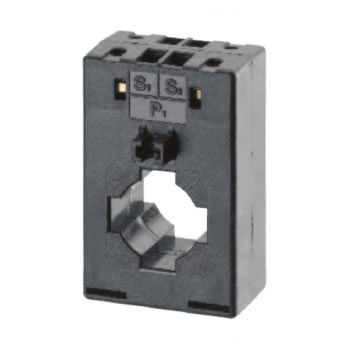

Frequency: 50 - 400Hz
Insulation Level: 600V, 10 kV BIL full wave
Wide range of round, rectangle windows or DIN windows available.
Available in many different sizes, with or without mounting feet.
Plastic case or encapsulated construction.
Secondary can be leads, terminals or pins.

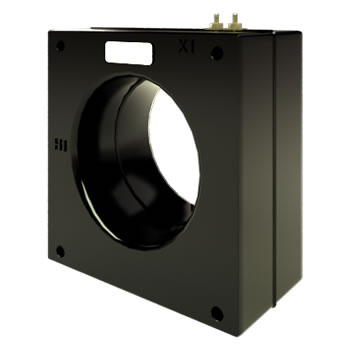

Designed to meet the requirement of ANSI or IEC standard.
Single ratio or multi ratio models are available.
Wide range of Ratios: 50:5 to 6000:5 (1 amp Secondary available).
Various secondary currents are available.

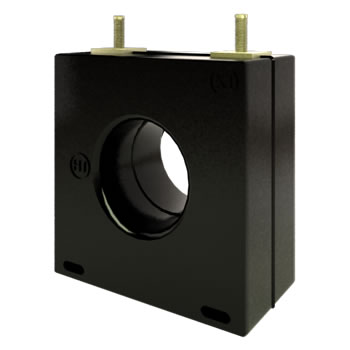

Frequency: 50 - 400Hz
Insulation Level: 600V, 10 kV BIL full wave
Wide range of round, rectangle windows or DIN windows available.
Available in many different sizes, with or without mounting feet.
Plastic case or encapsulated construction.
Secondary can be leads, terminals or pins.
Single ratio or multi ratio models are available.
Wide range of Ratios: 50:5 to 6000:5 (1 amp Secondary available).
Various secondary currents are available.

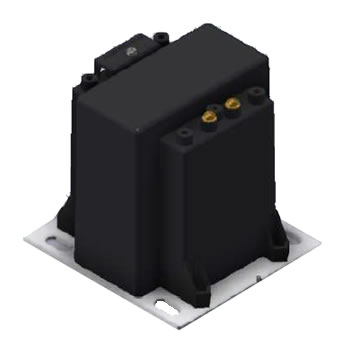

Frequency: 60 Hz Standard, 50 Hz available
Insulation Level: 600V, 10 kV BIL full wave
Available Primary Voltages: 69.3V to 690V
Wide range of Ratios with 120V secondary voltage (other secondary voltage available).
Single Phase or three Phase designs.
Molded plastic case construction.
Line to line or line to Neutral designs.
Can be supplied with or without primary fuses.
Single or dual secondary options are available.
Designed to meet IEEE.

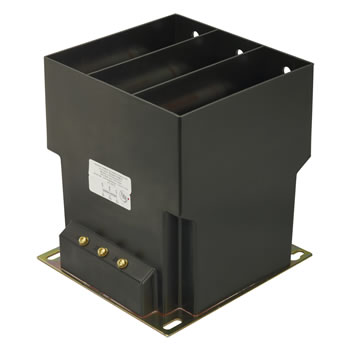

Frequency: 60 Hz Standard, 50 Hz available
Primary Voltages: up to 15kV
Secondary Voltage: 120V
Insulation Level: 600V, 10 kV BIL full wave
Single phase or three phase construction.
Single or two bushing designs.
Wide range of ratios with 120V secondary as standard (other secondary voltages available).
Vacuum resin encapsulated construction.
Various mounting options.
Supplied with or without primary fuses.
All transformers are partial discharge tested.

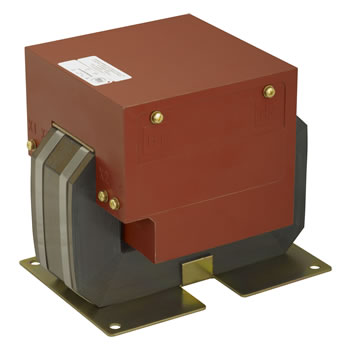

Frequency: 60 Hz Standard, 50 Hz available
Primary Voltages: up to 7.2V
Secondary Voltage: 120V (other voltages available)
Supplied with or without fuses.
Wide range of ratios with 120V secondary as standard.
Other secondary voltages available.
Dual ratio options available.
Vacuum resin encapsulated construction.
All transformers are partial discharge tested.
