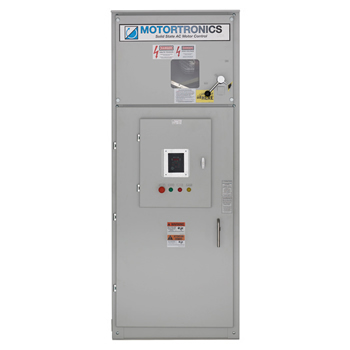

MVC4 DOL Series
MV Direct Online (Full Voltage) Starter
Take the SCRs out of the MVC4 soft starters and what's left is the MVC4-DOL — a full featured, full voltage starter. Built on the same proven MVC4 platform with the same room for easy cable connections and an oversized LV compartment. Also available configured for feeder applications.
| AC Supply Voltage @ 2.3kV | Up to 2,200 HP (630A max) |
| AC Supply Voltage @ 4.16kV | Up to 4,000 HP (630A max) |
| AC Supply Voltage @ 13.8kV | Up to 6,300 HP (400A max) |
| Line Voltages | 2,300 / 4,160 / 13,800V (+10% / -15%) |
| Frequency | 50 / 60 Hz |
| Protection Relay | RX-5 (complete protection & metering) |
Easy Cable Connections
Generous room for cable connections — same proven MVC4 enclosure and layout.
Oversized LV Compartment
Large low voltage compartment available for customer use and control wiring.
Feeder Configuration
Available configured for feeder applications in addition to motor starting.
RX-5 Protection Relay
Advanced protection relay provides complete motor protection and metering in one package.
