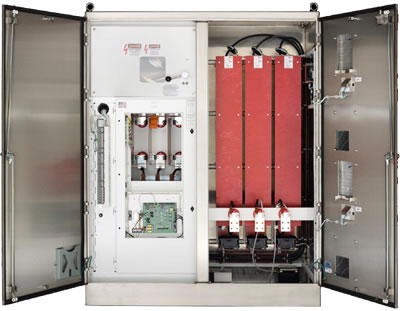

MVH Series
Medium Voltage Heater Controller
The MVH Series Medium Voltage Heater can be used in different heating applications across multiple industries including gas heaters, boilers, and steam heaters. Medium voltage heaters offer multiple benefits over low voltage heaters: lower installation cost, improved efficiency, energy savings, and lower maintenance cost.
| Applications | Gas heaters, boilers, steam heaters |
| Key Benefits | Lower cost, improved efficiency, energy savings |
| vs Low Voltage | Lower installation & maintenance cost |
Lower Installation Cost
MV heaters require less current for the same heating power — smaller cables, lower installation cost.
Improved Efficiency
Higher voltage operation delivers improved system efficiency over equivalent LV heaters.
Energy Savings
Reduced losses in wiring and switchgear compared to low voltage equivalents.
Lower Maintenance
Simplified distribution system means fewer components and lower long-term maintenance cost.
MVH Series
Technical Specifications
Voltage Class Models
2300V: MVH2350 / 2375 / 23100 / 23150 / 23200
3000V: MVH3050 / 3075 / 30100 / 30150 / 30200
3300V: MVH3350 / 3375 / 33100 / 33150 / 33200
4160V: MVH4150 / 4175 / 41100 / 41150 / 41200
7200V*: MVH7250 / 7275 / 72100 / 72150 (*not UL/ETL rated)
Current Ratings
50A, 75A, 100A, 150A, 200A
Start / Stop Control
120 VAC, 2 or 3 wire control
Analog Input Signal
0-5 VDC, 0-10 VDC, 4-20 mA — controls 0-100% output
Analog Output Signals
Four 0-10 V outputs: three phase currents (3) + output voltage (1)
Fault Relay Outputs
2 fault relays:
• Over Temperature (Form C)
• Over Current (Form A)
Certification
UL Listed, ETL Listed (2300 – 4160V models)
Enclosure Options
UL Type 1, UL Type 3R, UL Type 4, UL Type 4X
Applications
Gas heaters, boilers, steam heaters and similar industrial heating loads.
Benefits vs Low Voltage
Lower installation cost, improved efficiency, energy savings, lower maintenance cost.
