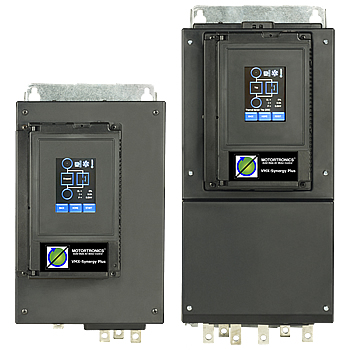

VMX-Synergy Plus™ ANSI
ANSI Rated Premium Digital Soft Starter
Best in Class ANSI Rated Soft Starter. No application sizing required — the heavy-duty ANSI model handles demanding applications automatically. Internal contactor allows the motor to continue running in an emergency. Tested to 65kA with breakers.
| AC Supply Voltage | 208 – 690 Vac |
| HP Ratings | 5 to 1,200 HP |
| Amp Ratings | 9 to 1,250 Amps |
| Overload Rating | 500% for 60 sec. |
| Bypass | Internal contactor bypass |
| Short Circuit | Tested to 65kA with breaker |
| Enclosure | Module only or NEMA 1 / 12 |
| Rating | ANSI |
65kA Rated
Tested to 65kA with breakers — highest rated protection in its class.
Internal Contactor
Emergency bypass contactor allows motor to continue running even if electronics fail.
Color Touch Screen
15 global languages with active mimic diagrams and full event logging.
iERS Energy Savings
Intelligent Energy Recovery System for fixed-speed energy optimization.
VMX-Synergy Plus™ (ANSI)
Technical Specifications
Power Components
6 SCRs in inverse parallel pairs for full phase angle soft start control
Line Voltage Range
200 to 690 VAC, 3 phase +10% / -15% on all units, 50/60 Hz
Current Ratings
9 – 1250A depending on unit selection
Control Voltage
User supplied 110/230VAC +10% / -15% tolerance, 60 Hz
Optional 24VDC
Bypass
Standard on all units
Enclosure
Open Chassis / Panel Mount
Overload
Full motor overload with Memory
Programmable Trip Class 10, 20 or 30
Overload Capacity 500% for 60 sec.
Short-Circuit Rating
65kA with breaker (VMX-SGY-A-62 and above)
Energy Savings
iERS – intelligent Energy Recovery System as standard
Input / Outputs
4 × programmable digital inputs
5 × programmable output relays
Analog input and output
USB for data logging and parameter setting/saving
Thermistor
Setup
Full Automatic Setup
Data Logging
Lifetime Application Event Logging Diagnostics
Comprehensive data logging
Touch Screen
3.5″ Full Color Touch Screen
Languages
Select from 15 Languages
Communication
Modbus RTU Standard
Options available for: Modbus TCP, Profibus DP, Ethernet/IP
VMX-Synergy Plus™ (ANSI)
Documentation
- VMX-Synergy Plus™ Brochure3.64 MB
- VMX-Synergy Plus™ ANSI Brochure1.72 MB
- VMX-Synergy Plus™ User Manual4.21 MB
- VMX-Synergy Plus™ Quick Start Leaflet337 KB
- VMX-Synergy Plus™ Quick Start Guide2.84 MB
- VMX-Synergy Plus™ Modbus Parameter Tables598 KB
- VMX-Synergy Plus™ Communication Modules1 MB
- VMX-Synergy Plus™ Log File Download1 MB
- VMX-Synergy Plus™ Battery Removal215 KB
VMX-Synergy Plus™ (ANSI)
Software Tools
System Requirements
Windows 10 or higher
Intel Core i3 or equivalent
2 GB RAM minimum
100 MB disk space
