VMX-P Plus Series

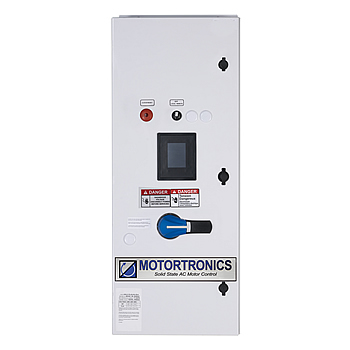

Premium Configured Soft Starter – IEC / NEMA 4/12
Best in Class VMX-Synergy Plus IEC Soft Starter in a premium NEMA 4/12 enclosure. Built-in full motor overload protection, full data logging, field serviceable fans, upgradable firmware, and extensive I/O programmability.
| AC Supply Voltage | 208 – 480 Vac |
| Soft Starter | VMX-Synergy Plus (IEC) |
| HP Ratings | 5 to 400 HP |
| Amp Ratings | 18 to 500 Amps |
| Bypass | Integrated |
| Enclosure | NEMA 4 / 12 |
| Starting Method | 6 SCR voltage/current ramping |
Color Touch Screen
15 global languages with active mimic diagrams and full data logging via onboard USB.
iERS Energy Savings
Energy optimizing combined with bypass gives energy saving in more applications.
Command Center
Illuminated E-STOP, Start/Stop, Local/Off/Remote selector, and fault reset.
Auto Load Tuning
VMX-Synergy Plus™ tunes itself to the load for optimum performance.
VMX-P Plus (uses VMX-Synergy Plus IEC)
Technical Specifications
Power Components
6 SCRs in inverse parallel pairs for full phase angle soft start control
Line Voltage Range
200 to 600 VAC, 3 phase +10% / -15% on all units, 50/60 Hz
Current Ratings
17 – 500A depending on unit selection
Control Voltage
User supplied 24VDC, 110/230VAC +10% / -15% tolerance, 60 Hz
Bypass
Internal relay bypass for the SCR
Enclosure
IP00 (IP30 optional on VMX-SGY-I-17 to VMX-SGY-I-195)
Overload
Full motor overload with Memory
Programmable Trip Class 10, 20 or 30
Trip Class 10 Ie: AC-53a: 350% 17s, 5 starts/hour 90% duty
Trip Class 20 Ie: AC-53a: 400% 19s, 5 starts/hour 90% duty
Trip Class 30 Ie: AC-53a: 400% 29s, 5 starts/hour 90% duty
Short-Circuit Rating
65kA with breaker (VMX-SGY-I-48 and above)
Energy Savings
iERS – intelligent Energy Recovery System as standard
Input / Outputs
4 × programmable digital inputs
5 × programmable output relays
Analog input and output
USB for data logging and parameter setting/saving
Thermistor
Setup
Full Automatic Setup
Data Logging
Lifetime Application Event Logging Diagnostics
Comprehensive data logging
Touch Screen
3.5″ Full Color Touch Screen
Languages
Select from 15 Languages
Communication
Modbus RTU Standard
Options available for: Modbus TCP, Profibus DP, Ethernet/IP
