VMX-P Series

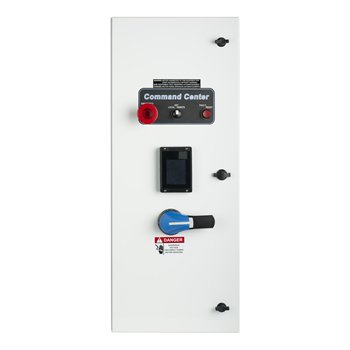

Premium Configured Soft Starter – IEC / NEMA 4/12
Best in Class VMX-Synergy IEC Soft Starter in a premium NEMA 4/12 enclosure. With built-in full motor overload protection, full data logging, field serviceable fans, upgradable firmware and extensive I/O programmability.
| AC Supply Voltage | 208 – 480 Vac |
| Soft Starter | VMX-Synergy (IEC) |
| HP Ratings | 5 to 400 HP |
| Amp Ratings | 18 to 500 Amps |
| Bypass | Integrated |
| Enclosure | NEMA 4 / 12 |
Color Touch Screen
Full messaging in 15 global languages with active mimic diagrams and data logging via USB.
iERS Energy Savings
Energy optimizing combined with bypass gives energy saving in more applications.
Command Center

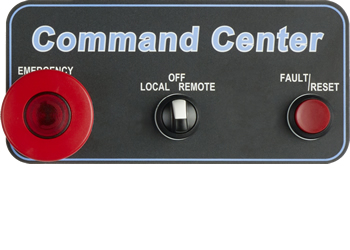

Illuminated E-STOP, Start/Stop, Local/Off/Remote selector, and fault reset.
Auto Load Tuning
VMX-Synergy™ tunes itself to the load for optimum performance.
VMX-P (uses VMX-synergy)
Technical Specifications
Power Components
6 SCRs in inverse parallel pairs for full phase angle soft start control
Line Voltage Range
200 to 480 VAC, 3 phase +10% / -15% on all units, 50/60 Hz
Current Ratings
17 – 477A depending on unit selection
Control Voltage
User supplied 110/230VAC +10% / -15% tolerance, 60 Hz
Optional 240VDC
Bypass
Standard on all units
Enclosure
IP20 / NEMA 1, IP00
Overload
Full motor overload with Memory
Standard Trip Class 10: 3 × 23 secs or 3.5 × 17 secs
3 or 5 starts per hour (Trip Class 20 and 30 programmable)
Energy Savings
iERS – intelligent Energy Recovery System as standard
Input / Outputs
4 × programmable output relays
3 × programmable digital inputs
Analog input / outputs
USB for data logging and parameter setting/saving
Thermistor
Setup
Full Automatic Setup
Data Logging
Lifetime Application Event Logging Diagnostics
Comprehensive data logging
Touch Screen
3.5″ Full Color Touch Screen
Languages
Select from 15 Languages
Communication
Modbus RTU Standard
Options available for: Modbus TCP, Profibus DP, Ethernet/IP
VMX-P Series
Documentation
- VMX-P Brochure2.01 MB
- VMX-Synergy™ Brochure5.56 MB
- VMX-Synergy™ Quick Start Guide2.28 MB
- VMX-Synergy™ User Manual6.63 MB
- VMX-Synergy™ Parameter Tables1.31 MB
- VMX-Synergy™ Fan Installation Guide1.22 MB
- VMX-Synergy™ Modbus Parameter Tables1.33 MB
- VMX-Synergy™ Remote Keypad User Guide748 KB
- VMX-Synergy™ Ethernet IP Module User Guide908 KB
- VMX-Synergy™ Profibus DP Module User Guide818 KB
